In response to COVID-19: A technique to improve the viral protection of a dental procedure mask in absence of an N95 shield respirator

by Chandur P.K. Wadhwani, BDS, MSD
Paul S. Rosen, DMD, MS
Ari S. Rosen
Yasmin H. Wadhwani
Kwok-Hung Chung, DDS, PhD

Abstract

The coronavirus disease 2019 (COVID-19) outbreak is a pandemic problem that is stretching the limits of medical and dental professionals to effectively and safely deliver health care. Personal protective equipment (PPE) is in short supply. As the contagion of this virus is spread through aerosol droplets, respiratory protection for health-care providers is an integral part of infection control. Since there is a shortage of masks, we offer our colleagues a novel technique to improve upon respiratory protection under the current circumstances.

Introduction

Face masks are an indispensable technology when dealing with a pandemic, especially as they offer protection against respiratory infections.¹ While a surgical mask may be effective in blocking splashes and large-particle droplets, by design a face mask does not filter or block very small particles in the air that may be transmitted by coughs, sneezes, or certain medical procedures. Surgical masks also do not provide complete protection from germs and other contaminants due to the loose fit between the surface of the face mask and the face.² Surgical face masks are not designed for protection from viral carriers, such as influenza and other viruses as well as the more recently discovered COVID-19—viruses which are believed to spread by aerosol transmission.^3-5

The current COVID-19 outbreak is one such example of a virus that can become lethal, spreading through aerosolized droplets and infecting anyone in close proximity. In medicine, and most certainly dentistry, we must treat patients with procedures that create aerosolization of these potentially lethal pathogens.^3-5 To combat this problem, the Centers for Disease Control and Prevention (CDC)⁵ has suggested that N95 masks be worn along with a surgical gown, drape, and surgical gloves, as well as other protective measures.^6-8

An N95 respirator is a protective device designed for efficient filtration of airborne particles by providing a very close facial fit. These devices should ideally form a seal around both the nose and mouth. The N95 version designed for medical use is meant to protect both patients and health-care personnel from the transfer of microorganisms, body fluids, and particulate material. Surgical N95 respirators are class II devices regulated by the Food and Drug Administration under 21 CFR 878.4040, and CDC NIOSH under 42 CFR Part 84.²

Many clinicians, when faced with treating emergency patients in a climate in which these masks are in short supply,^9,10 have been left to decide whether to wear suboptimal protection such as traditional procedure masks, to provide care that may not solve the problem by avoiding steps within the procedure that may create aerosolization, to seek out someone else who may have the proper equipment, or—as last resorts—to create a makeshift mask with available materials or send the patient to the emergency room. It has recently been reported that the CDC has also relaxed its specifications related to the N95 mask, such as its ability to fit and seal to the face.¹¹

Video: How to increase the viral barrier protection of a standard face mask if an N95 shield respirator is not available.This brief article provides a more practical means of enhancing a level 3 or examination mask to one that provides greater protection until a better alternative becomes available. This involves using material that can be purchased from a hardware store and a local pharmacy in addition to the face mask itself.

Technique

This technique can be used to enhance a level 3 or exam mask to provide increased protection.

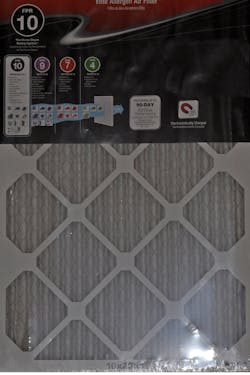

Figure 1a: Air filter FTP10 — **Figure 1a:** Air filter FTP10

1. Materials to be used include a standard surgical mask, air-conditioning filter with filter performance rating (FPR) 10 (figures 1a and 1b), scissors, stapler (for external use), marker pen, and surgical tape.

2. Outline the size of the mask onto the air filter (figure 2).

3. Remove the surgical mask, place surgical/hypoallergenic tape over the markings, and cut the air filter to shape. The filter will be placed on the outside of the mask, so it should be cut to the dimensions of the mask (figure 3a). Note that the wire mesh may be sharp; tape should be used to help prevent injury. Cut through the cardboard support material as this restricts the concertina effect of the filter (figure 3b).

Figure 1b: Information related to barrier provided. Note virus carriers. — **Figure 1b:** Information related to barrier provided. Note virus carriers.

4. Note the side of the mask as well as which way the air filter is designed (airflow is shown on the box). For maximum barrier to viral carriers, face the wire support toward the wearer (figure 4). For additional protection, the air filter material may be doubled such that the wire mesh is folded in on itself. This, however, may increase discomfort to the wearer.5. Staple the mask and the air filter together in approximately three places on each of the edges. Remember that the mesh is placed toward the mask (figure 5), so be aware of which way the mask is facing. In the case of doubling the mask, the wire mesh will be facing inward and folded in on itself. Place micropore or a similar tape around the periphery to assist in

Figure 2: Overlay the mask on top of the air filter. Mark size required prior to applying tape to marked area. — **Figure 2:** Overlay the mask on top of the air filter. Mark size required prior to applying tape to marked area.

sealing the mask and the air filter. This will also prevent any wire from showing.

Figure 3a: Cut out air filter to size; the tape protects from sharp wire. — **Figure 3a:** Cut out air filter to size; the tape protects from sharp wire.

6. Stretch out the mask fully (figure 6a) to see if more tape is required to close the gap between the filter and the mask. If so, add tape for support to the weaker areas (figure 6b).

7. To add further protection and prevent the mask from moving, secure the edges with more surgical tape to improve the seal (figures 7a and 7b).

Discussion

Figure 3b: Remove carboard supports and compare to mask. — **Figure 3b:** Remove carboard supports and compare to mask.

The sudden pandemic involving COVID-19 has left the supplies of masks that are capable of preventing viral transmission and exposure contamination at gravely low levels. The N95 level surgical mask, which had been advocated as an effective barrier in the H1N1 virus crisis, is in short supply or, in many instances, not available at all.The technique described in this article is not being presented as a valid answer to replace conventional N95 surgical masks. Rather, in situations where N95 masks are required but are not available, this alternate mask may help fill the gap left by inadequate supplies and give added protection to those in need.

Figure 4: Confirm airflow direction for optimum protection as noted on the packaging. — **Figure 4:** Confirm airflow direction for optimum protection as noted on the packaging.

The standards set on N95 surgical masks fall under the OSHA Standard 29 CFR 1910.134. To summarize this, it is important to know that these respirator devices must meet basics in fit above and beyond the qualitative and quantitative aspects. The fit tests include normal breathing, deep breathing, turning the head from side to side, moving the head up and down, talking, grimacing,

Figure 5: Staple front surface of mask to metal wire mesh side in approximately three sites on each edge. — **Figure 5:** Staple front surface of mask to metal wire mesh side in approximately three sites on each edge.

and bending over.

Another level of scrutiny concerns qualitative and quantitative fit testing of half masks, such as those that only cover the nose and mouth. Qualitative tests include those that detect leakage of isoamyl acetate (which smells like bananas), saccharin (which leaves a sweet taste in one’s mouth), Bitrex (which leaves a bitter taste), and irritant smoke (which can cause coughing).

Figure 6a: Stretch out the mask fully. The inside of the mask is shown. — **Figure 6a:** Stretch out the mask fully. The inside of the mask is shown.

The authors of this article subjected the masks to saccharin and smoke testing and found that, in both instances, the mask passed the tests. The other tests were not available or possible to perform at this stage. Quantitative testing of respirators uses a machine to measure the actual amount of leakage into the mask instead of relying on one’s sense of taste, smell, or irritation. The three tests accepted by OSHA include generated aerosol, ambient aerosol, and controlled negative pressure. As of the writing of this article, government departments have reportedly temporarily relaxed the standard for the fit of the N95 respirator mask due to the short supply.⁸

The advantage of this face mask modification technique is that it will still allow health-care professionals to continue to wear their standard eye protection, whether that be eyeglasses, loupes, or a face shield. Masks have historically been important as a physical barrier against aerosolization, which occurs in a number of medical and dental procedures.^5,6,8,11 While more of this emphasis has been on the physical and visual aspects along with bacteria, as we move forward we are realizing that we must be cognizant of their implication with viruses.^3,4

Figure 6b: Check to see if more tape is required to close the gap between the filter and mask. If needed, add tape to support the weaker areas. — **Figure 6b:** Check to see if more tape is required to close the gap between the filter and mask. If needed, add tape to support the weaker areas.

The current filter being used has an FPR of 10. This system was developed by Home Depot to rate brands being sold through their stores, including Honeywell. An FPR of 9 or 10 indicates a filter’s ability to capture airborne particles smaller than 1 micron. The current filter we suggest claims that it may prevent 95% of airborne particles (with particle size larger than 0.3 microns) from penetrating the filter, which is similar to the filtration properties required of an N95 mask.²

Figure 7a: Facial view: Add tape for further protection. Additional surgical tape prevents the mask from moving and secures edges to the face. — **Figure 7a:** Facial view: Add tape for further protection. Additional surgical tape prevents the mask from moving and secures edges to the face.

Other rating systems that are used include MERV (Minimum Efficiency Reporting Value) and MPR (Microparticle Performance Rating). MERV is the primary rating system used in the industry, both domestically and internationally. It was established by ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) and rates a filter’s ability to capture and hold particles and pollutants. MPR was developed by 3M, and it rates the manufacturer’s filters and their ability to capture airborne particles smaller than 1 micron. This can be achieved at an FPR rating of 9 or 10 or a MERV rating of 13 (on a scale of 20) for standard heating or air-conditioning.

It is suggested that filters in heating and air-conditioning systems be changed every 90 days. The authors are not advocating this as the use of this filter is different and not validated for this length of time. It should be noted that, in theory, viruses can be transmitted through means other than aerosol, such as large droplets or direct contact with secretions (or fomites). The need for good hand hygiene as reported by the World Health Organization and the FDA, in addition to routine use of adequate PPE, cannot be overemphasized.^7,8

Summary

Figure 7b: Inferior lateral view: Add tape as instructed in Figure 7a. — **Figure 7b:** Inferior lateral view: Add tape as instructed in Figure 7a.

This article is a report of a technique that may possibly improve the level of the personal protective face mask being used in dentistry. The authors acknowledge that this technique has not been validated completely and will require further testing. Given the dire circumstances due to COVID-19, it is reasonable to consider its implementation when absolutely necessary.

Authors’ note: The authors are providing this information in light of the severe shortage of N95 masks. In no way are the authors stating that this technique has been validated, nor are they advocating the use of this mask instead of an N95 mask if it is available. Each individual must decide what to do given the risks and benefits to themselves and their patients.
